Blind Rivets from the Finest manufacturers around the world:
 |
 |
|
|
 |
From the Standard "N" Rivet to Bulb-Tite Rivets, C Rivets, Cherry-Mates, FastFire, G Rivets, Hemlocks, Interloks, KTR Rivets, Monobolts®, Multi-Grips, T Rivets and Tigerbolts®.
|
|
BULB-TITE RIVETS |
|
Grip Tolerant |
The BULB-TITE rivet will fasten materials over a wide range of sheet thicknesses. |
|
Installed |
The three legs of the BULB-TITE rivet provide a large blind-side bearing surface over which to distribute load. For soft, uneven surfaces, this eliminates the need for back-up washers. This frequently results in a net savings of materials and labor. |
|
Economical |
A non-structural version is available at a reduced cost should the structural version not be required. |
|
Adaptable |
This fastener will fasten many types of substrates. It is especially well suited for soft (honeycomb, foam, and some plastic substrates), brittle or irregular strata. |
|
Vibration Resistant |
The BULB-TITE Rivet will withstand severe vibration without loss of the mandrel's plug section. |
|
Choice of Finished Appearance |
The BULB-TITE Rivet is also available in a "shaveable"
version allowing the appearance of a solid or "buck" rivet without the complications of installation. |
 |
|
|
|

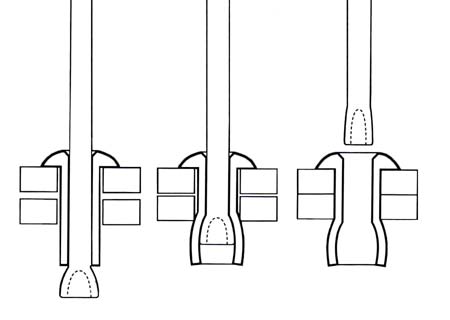

C RIVETS |
|
Non-structural |
Hollow, pull-through mandrel blind rivets. |
| Lightweight |
The lightest weight rivet in relation to its
holding |
|
Good Clamp-up |
Action of mandrel pulling through rivet body clamps sheets firmly together and expands rivet body to fill hole. |
| Low Shock | In brittle material subject to crazing or cracking the hollow C Rivet can be used without the usual shock effect which accompanies the mandrel breaking in conventional pull-type blind rivets. |
|
Reduced Callbacks |
In the electronics area where circuit boards and other electronic equipment is susceptible to shorts and other electrical problems, there is no mandrel end to come loose and fall out causing problems. |
|
|
|
Heads |
Domed |
|
|||
| Materials Available |
Aluminum |
Steel |
Stainless |
|
|
| Diameters Available |
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
| Grip
Lengths Available |
0.063" |
0.000" |
0.063" |
0.063" |
0.063" |
|
|

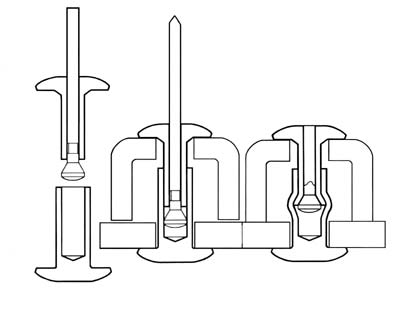

CHERRY-MATES® |
|
Extra Long Grip Range |
Grip Range may be as much as 4". |
|
Controlled Clamp-up |
Clamps tightly, but without crushing. |
|
Tamperproof |
Smooth, Low Profile heads on both ends. No head or nut to be unscrewed. |
|
NonCritical Holes |
Close tolerance holes are not necessary as the holding of the rivet is to its female part and not to the substrate which it is fastening. |
|
Vibration Resistant |
Will not shake loose easily like screws or bolts. |
 |
|
Heads |
Large |
|
| Materials Available |
Aluminum |
Steel |
| Diameters Available |
3/16" |
1/4" |
|
Grip Lengths |
5/8" |
5/8" |
|
|

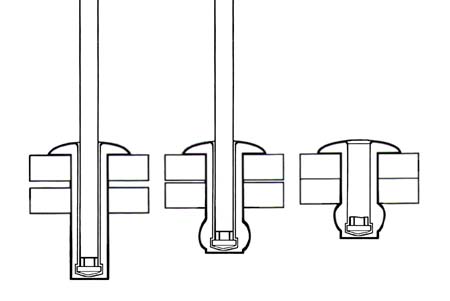

CLOSED END RIVETS |
|
Sealed Rivet Body |
Restricts passage of vapor or liquid through the body of the installed rivet. |
|
Total Mandrel Retention |
Because the body of the rivet is closed, the mandrel head can not fall out through the back side into the workpiece. |
 |
|
Heads |
Domed |
||
| Materials Available |
Aluminum |
Stainless |
|
| Diameters Available |
1/8" |
5/32" |
3/16" |
| Grip
Lengths Available |
0.032" |
0.063" |
0.063" |
|
|
|

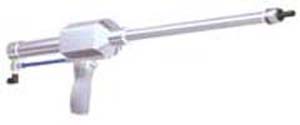

Fast Installation |
Long mandrel, pre-loaded
system allows up to 100 rivets to be loaded
at one time. This semi- |
|
Non-structural |
Hollow, pull-through mandrel blind rivets. |
|
Lightweight |
The lightest weight rivet in relation to its
holding |
|
Good Clamp-up |
Action of mandrel pulling through rivet body clamps sheets firmly together and expands rivet body to fill hole. |
| Low Shock | In brittle material subject to crazing or cracking the hollow C Rivet can be used without the usual shock effect which accompanies the mandrel breaking in conventional pull-type blind rivets. |
|
Reduced Callbacks |
In the electronics area where circuit boards and other electronic equipment is susceptible to shorts and other electrical problems, there is no mandrel end to come loose and fall out causing problems. |
|
|
|
Heads |
Domed |
Counter- |
||||||||
| Materials Available |
Aluminum | Steel |
Stainless |
|||||||
| Diameters Available |
5/64" |
3/32" |
5/32" |
3/16" |
1/4" |
|||||
| Grip
Lengths Available |
0.000" |
0.000" |
0.000" |
0.000" |
0.000" |
|||||
|
Metric |
1.9mm |
2.4mm |
3.0mm |
3.2mm |
3.8mm |
4.0mm |
4.8mm |
5.0mm |
6.0mm |
6.3mm |
|
Grip
Lengths Available |
19mm |
19mm | 19mm | 19mm | 19mm | 19mm | 19mm | 19mm | 19mm | 19mm |
|
|

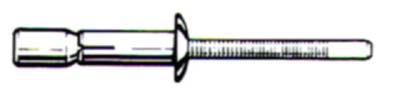

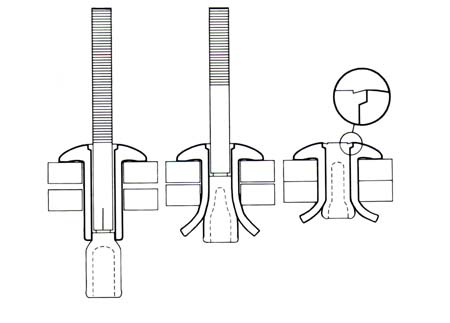

G RIVETS |
|
Wide Grip Range |
A single G Rivet can cover a wide range of material thicknesses..... resulting in lower inventory costs. |
|
Flush Break Mandrel |
The mandrel breaks off flush throughout the entire grip range...... No need to trim. |
|
High Strength |
The G rivet has the high shear and tensile strength required for structural applications. |
|
Large Blind-Side |
The rivet body splits into four "petals" to form a large footprint. |
|
Excellent |
During installation, the G rivet pulls material firmly together prior to the rivet locking in place. The rivet body also expands radially for hole fill. |
|
Excellent |
Upon setting, the G rivet flares the upper end of the mandrel into the rivet body resulting in excellent resistance to vibration. |
 |
|
Heads |
Domed |
|
| Materials Available |
Aluminum |
|
| Diameters Available |
3/16" |
1/4" |
| Grip
Lengths Available |
0.062" |
0.062" |
|
|

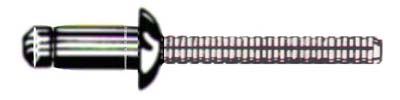

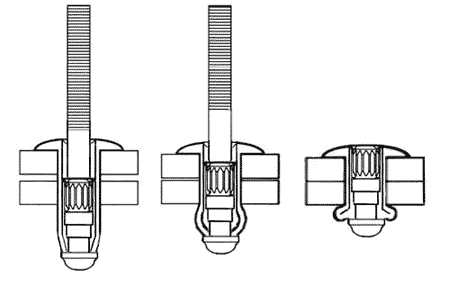

HEMLOK® RIVETS |
|
High Strength |
The Hemlok rivet has the high shear and tensile strength required for structural applications. |
|
Large Blind-Side |
The rivet body mushrooms to form a large footprint. |
|
Excellent |
During installation, the Hemlok rivet pulls material firmly together prior to the rivet locking in place. |
|
Excellent |
Upon setting, the Hemlok rivet effects a mandrel to body compression resulting in excellent resistance to vibration. |
 |
|
Heads |
Domed |
|
| Materials Available |
Aluminum |
Steel |
| Diameters Available |
1/4" |
|
| Grip
Lengths Available |
0.068" |
|
|

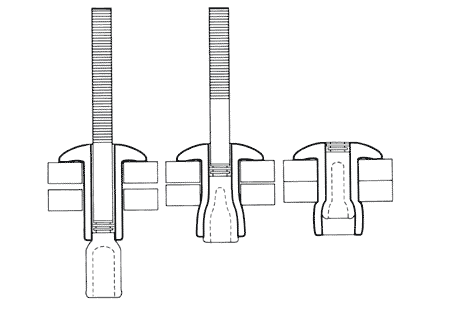

INTERLOCK® RIVETS |
|
Grip Tolerant |
The Interlock® rivet will fasten materials over a wide
range of sheet thicknesses, breaking flush every time. |
|
High |
Pulls substrates together consistently. |
|
Hole Filling |
As a "wire-draw" rivet, the Interlok Rivet expands radially during the installation to completely fill even elliptical holes. Provides good resistance to leakage and vibration. |
|
Extra High Shear & Tensile Strength |
High tensile and shear strengths require less rivets per assembly than other rivets resulting in a stronger product at a lower installed cost. |
 |
|
Heads |
Domed |
Large |
Counter- |
Brazier |
| Materials Available |
Aluminum |
Steel |
Stainless |
|
| Diameters Available |
3/16" |
1/4" |
||
| Grip
Lengths Available |
0.062" |
0.080" |
|
|

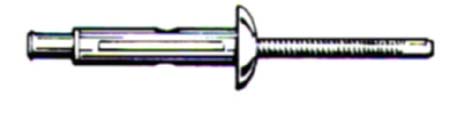

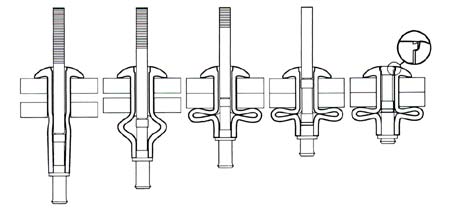

KTR RIVETS (Klamptite®) |
|
Grip Tolerant |
The KTR rivet will fasten materials over a wide range of sheet thicknesses. |
|
Installed |
The three legs of the KTR rivet provide a large blind-side bearing surface over which to distribute load. For soft, uneven surfaces, this eliminates the need for back-up washers. This frequently results in a net savings of materials and labor. |
|
Economical |
A non-structural version is available at a reduced cost should the structural version not be required. |
|
Adaptable |
This fastener will fasten many types of substrates. It is especially well suited for soft (honeycomb, foam, and some plastic substrates), brittle or irregular strata. |
|
Vibration Resistant |
The KTR Rivet will withstand severe vibration without loss of the mandrel's plug section. |
 |
|
Heads |
Domed |
|
| Materials Available |
Aluminum |
|
| Diameters Available |
3/16" |
1/4" |
| Grip
Lengths Available |
0.050" |
0.060" |
|
|

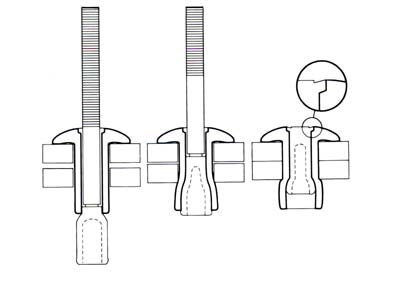

RHINOBOLT, |
|
Grip Tolerant |
The Monobolt® or Tigerbolt® rivet will fasten materials over a wide range of sheet thicknesses, breaking flush every time. |
|
High |
Pulls substrates together consistantly. |
|
Hole Filling |
As a "wire-draw" rivet, the Monobolt® or Tigerbolt® expands radially during the installation to completely fill even elliptical holes. Provides excellent resistance to leakage and vibration. |
|
Extra High Shear & Tensile Strength |
High tensile and shear strengths require less rivets per assembly than other rivets resulting in a stronger product at a lower installed cost. |
 |
|
Heads |
Domed |
Large |
Counter- |
Brazier |
| Materials Available |
Aluminum |
Steel |
Stainless |
|
| Diameters Available |
3/16" |
1/4" |
||
| Grip
Lengths Available |
0.062" |
0.080" |
|
|

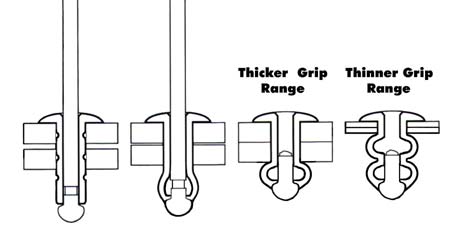

| Wide Grip Range |
A single Multi-Grip Rivet can cover a wide range of material thicknesses..... resulting in lower inventory costs. |
|
Good Hole Filling |
The Multi-Grip Rivets expand radially, providing a better hole fill. |
|
Locked Mandrel |
The Multi-Grip Rivet "ball locks" the mandrel into the rivet body giving added weather resistance. |
|
Large Blind-Side |
The rivet body sets in place it forms a larger blind side footprint. |
 |
|
Heads |
Domed |
Large |
||
| Materials Available |
Aluminum |
Steel |
Stainless |
|
| Diameters Available |
1/8" |
5/32" |
3/16" |
1/4" |
| Grip
Lengths Available |
0.039" |
0.039" |
0.039" |
0.059" |
|
|

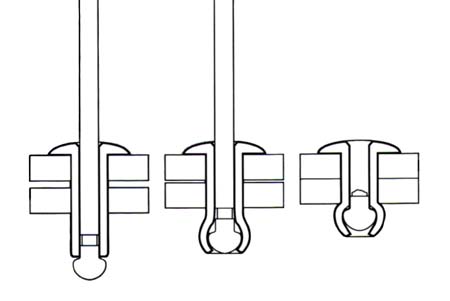

| Low Cost |
Substantial savings in fastener costs can be obtained by using the N style rivet. May be used in place of screws, bolts, clamps or spotwelds. |
|
Fast |
Quick and easy to use with hand, power or speed riveters. Uses are limitless in fastening applications, maintenance and repair. These may be obtained for the semi automatic tooling. |
 |
|
Heads |
Domed |
Large Flange |
Counter- |
||
| Materials Available |
Aluminum | Copper |
Steel |
Stainless |
|
| Diameters Available |
3/32" | 1/8" | 5/32" | 3/16" | 1/4" |
| Grip
Lengths Available |
0.020" |
0.000" |
0.020" |
0.020" |
0.020" |
|
|
|

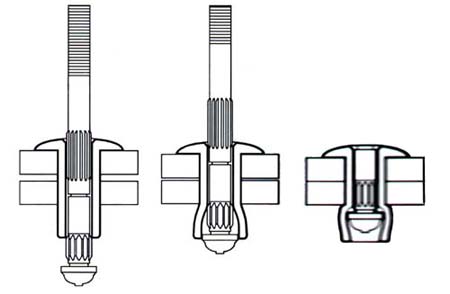

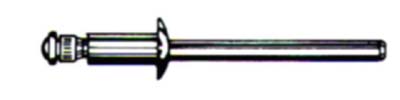

High Shear Strength |
The Q Rivet mandrel plugs the entire length of the rivet's body, providing high shear strength values for structural or load bearing applications. |
|
Sealing Capability |
The specially designed mandrel of the Q rivet is engineered to effect a weather tight seal when the rivet is properly set. |
|
Vibration Resistant |
Again the specially designed mandrel insures that the rivet body curls over the end of the mandrel providing positive retention. |
 |
|
Heads |
Domed |
|||
| Materials Available |
Aluminum |
Steel |
Monel |
Stainless |
| Diameters Available |
1/8" |
5/32" |
3/16" |
1/4" |
| Grip
Lengths Available |
0.000" |
0.062" |
0.062" |
0.062" |
|
|
|

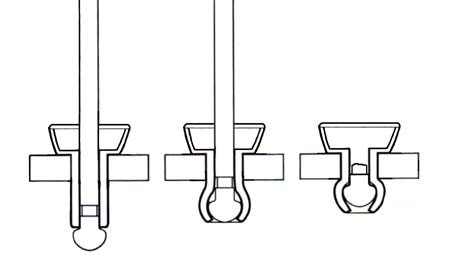

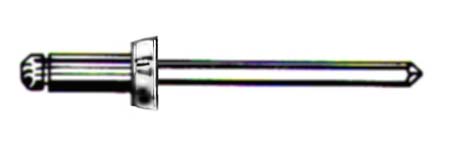

Labor |
The Quik-Snap installs quickly, as easily as a blind rivet. Simplified with only one piece construction, it eliminates the two part installation with screws. |
|
Versatile |
Compatible with the standard snap for canvas used on truck bodies, convertibles, pick up trucks, boats, cars and many other applications. |
|
Weather |
The snap head is made of nickel plated brass and the mandrel is stainless steel. |
 |
|
Heads |
Snap |
|
| Materials Available |
Brass & |
|
| Diameters Available |
1/8" |
3.2mm |
| Grip
Lengths Available |
0.126" |
0.250" |
|
|
|

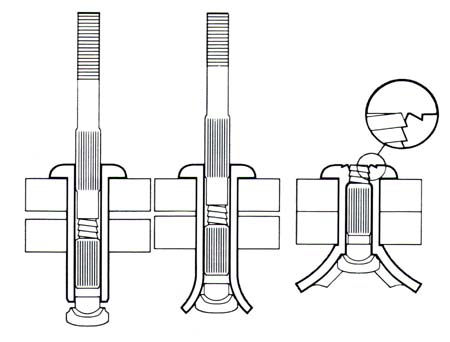

Extremely High Shear &
Tensile |
The hardend mandrel in the T Rivet provides high tensile strength and shear values comparable with solid aluminum rivets or machine screws. |
|
High |
The T Rivet will draw sheets firmly together, even when separated by as much as 3/16". |
|
Vibration Resistant |
The T Rivet will withstand severe vibration without loss of the mandrel's plug section. |
 |
|
Heads |
Domed |
Large Flange |
Counter- |
||
| Materials Available |
Aluminum | Copper |
Steel |
Stainless |
|
| Diameters Available |
3/32" | 1/8" | 5/32" | 3/16" | 1/4" |
| Grip
Lengths Available |
0.020" |
0.000" |
0.020" |
0.020" |
0.020" |
|
|
|
||
|
|
We can supply threaded inserts from the stock common, off-the-shelf items to custom designed, high production threaded inserts. We work with Brass, Steel, Stainless Steel and Aluminum, but other materials can be purchased on custom orders.
|
|
|

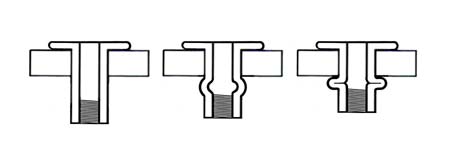

TYPE M |
|
Labor |
Reduced assembly costs are a result of one sided, blind application. One person operation, no lost nuts or other personnel needed later to secure the nut. |
|
Many Grip |
With the different styles and sizes, most grip ranges are addressed. |
|
Permanent |
Crimps the parent material providing a good backside footprint resulting in a secure installation. |
|
Ease of |
Incredibly easy installation results in less worker fatigue, faster installation time and uniformity in fastener installation. |
|
Variety |
A large selection of materials, head styles and other options provides for a nearly unlimited amount of choices for the engineering department. |
|
|
|
Heads |
Small |
Large |
Low |
|
|
||
| Available Options |
Splined |
Lead-In |
Hexagonal |
||||
| Materials Available |
Aluminum |
Steel |
Stainless |
|
|||
|
Thread |
|
8-32 |
10-24 |
12-24 |
1/4-20 |
5-16-18 |
3/8-16 |
|
Grip |
0.010 |
0.010 |
0.010 |
0.010 |
0.020 |
0.027 |
0.027 |
|
Metric |
M4x0.7 |
M5x0.8 | M6x1.0 | M8x1.25 | M10x1.5 | ||
|
Grip |
0.50 |
0.50 |
0.70 |
0.70 |
0.05 |
|
|
 |

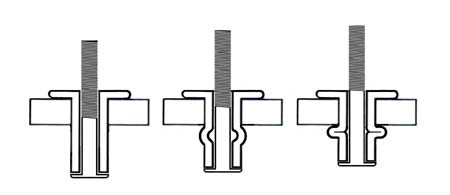

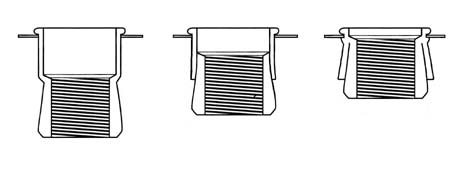

TYPE S |
|
Labor |
Reduced assembly costs are a result of one sided, blind application. One person operation, no lost nuts or other personnel needed later to secure the nut. |
|
Many Grip |
May be used in any material thickness from 0.030" through solid materials. |
|
Permanent |
Provides 360° contact with material as the body expands radially. |
|
Ease of |
Incredibly easy installation results in less worker fatigue, faster installation time and uniformity in fastener installation. |
|
Minimal |
As the Type S threaded insert slides into itself to expand the blind side footprint, it leaves less blind side protrusion. |
|
|
|
Heads |
Small |
|||||
| Materials Available |
Steel |
|||||
|
Metric |
M3x0.5 |
M5x0.8 | M6x1.0 | M8x1.25 | M10x1.5 | |
|
Grip |
0.030 |
0.030 to 0.187 |
0.030 to 0.187 |
0.030 to 0.187 |
0.030 to 0.187 |
|
|
Thread |
|
8-32 |
10-24 |
1/4-20 |
5/16-18 |
3/8-16 |
|
Grip |
0.030 |
0.030 |
0.030 |
0.030 |
0.030 |
0.030 |
|
|
|

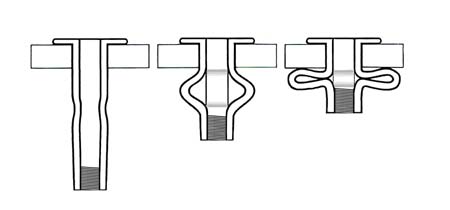

SPIDER |
|
Labor |
Reduced assembly costs are a result of one sided, blind application. One person operation, no lost nuts or other personnel needed later to secure the nut. |
|
Many Grip |
Long body with "umbrella" set assures that most grip ranges are addressed. |
|
Variety of Materials |
Wide spider-like footprint allows installation into a wide range of materials such as fiberglass, certain foams, wood and many other substrates, |
|
|
|
Heads |
Small |
Counter- |
||||
| Materials Available |
Steel |
Brass |
Aluminum |
|||
|
Metric |
M4x0.7 |
M5x0.8 |
M6x1.0 |
M8x1.25 | M10x1.5 | |
|
Grip |
0.50 |
0.50 |
0.50 |
0.50 |
0.50 |
|
|
Thread |
|
8-32 |
10-24 |
1/4-20 |
5/16-18 |
3/8-16 |
|
Grip |
0.020 |
0.020 |
0.020 |
0.020 |
0.020 |
0.020 |
|
|
|
Rifbolts® |
|
Labor |
Reduced assembly costs are a result of one sided, blind application. One person operation, no lost nuts or other personnel needed later to secure the bolt. |
|
Many Grip |
May be used in any material thickness. |
|
Variety |
Several different body styles to choose from along with different bolt lengths. |
|
Ease of |
Incredibly easy installation results in less worker fatigue, faster installation time and uniformity in fastener installation. |
|
Ease |
As the Rifbolt® leaves a permanent bolt from the assembly it facilitates many types of installations. Wire harnesses, fuel lines, evaporator lines, and many other items may be hung to the bolt during the assembly process while awaiting the nut to be placed securing its final state of assembly. |
|
|
|
Heads |
Domed |
Large Flange |
Counter- |
|||
|
Materials |
Steel |
|||||
|
Available |
Splined |
Lead-In |
Hexagonal |
|||
|
Diameters |
1/4-20 |
5/16-18 | 3/8-16 | 1/2-13 | ||
| Grip
Lengths Available |
0.100" |
0.100" |
0.100" |
0.100" |
||
| Metric Diameters Available |
M-4 |
M-5 |
M-6 |
M-8 |
M-10 |
M-12 |
| Grip
Lengths Available |
0.5mm |
0.5mm |
0.5mm |
0.5mm |
0.5mm .0mm |
0.5mm |
|
|
|
||
|
|
|
|
|
|
 |
|
A high quality, low maintenance, air/hydraulically operated tool for light duty industrial applications. |
702 Air/Hydraulic Riveting Tool |
| FEATURES: Light weight (3-1/2 lbs.) and powerful, the 702 has a rugged cast aluminum body. With the hydraulics it is the most powerful rivet tool for its size. | |||||
| Material Diameter of Rivets Supported by the 702 | |||||
|
3/32" |
1/8" |
5/32" | 3/16" | 1/4" | |
| Aluminum |
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
||
|
Steel |
|
|
|
||
|
Stainless |
|
|
|
||
|
|
 |
|
A high quality, low maintenance, air/hydraulically operated tool for medium to heavy duty industrial applications. |
703 Air/Hydraulic Riveting Tool |
| FEATURES: Weighing only 5 pounds this tool is a real work horse. Rugged cast aluminum body. Exceptional pulling force and reliability. | |||||
| Materials Diameters Supported by the 703 | |||||
|
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
|
| Aluminum |
|
|
 |
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
Steel |
|
|
|
|
* See Note |
|
Stainless |
|
|
|
|
* See Note |
| Note: Tool is rated for all 1/4" rivets except Hemloks, Interlocks®, Monobolts® and Tigerbolts®. | |||||
|
|
|
|
A high quality, low maintenance, air/hydraulically operated tool for heavy duty industrial applications. |
743 Air/Hydraulic Riveting Tool |
| FEATURES: Weighing 6-1/4 pounds this powerful 743 has a rugged cast aluminum body. This has been the heavy duty workhorse of the American auto industry for over two decades. | |||||
| Materials Diameters Supported by the 743 | |||||
|
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
|
| Aluminum |
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
Steel |
|
|
|
|
|
|
Stainless |
|
|
|
|
|
|
|
|
|
An economical, |
ET-100 Air/Hydraulic Riveting Tool |
| FEATURES: Light weight (4 lbs.) it is easy to use. Comes with ring for suspending and an automatic mandrel collector which also keeps rivets in place even when pointed downward. | |||||
| Materials Diameters Supported by the ET-100 | |||||
|
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
|
| Aluminum |
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
Steel |
|
|
|
|
|
|
Stainless |
|
|
|
||
|
|
|
|
An economical, air/hydraulically operated tool for medium to heavy duty industrial applications. |
ET-150 Air/Hydraulic Riveting Tool |
| FEATURES: Light weight (5-1/2 lbs.) it is easy to use. Comes with ring for suspending and an automatic mandrel collector which also keeps rivets in place even when pointed downward. | |||||
| Materials Diameters Supported by the ET-150 | |||||
|
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
|
| Aluminum |
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
Steel |
|
|
|
|
|
|
Stainless |
|
|
|
|
|
|
|
|
|
A very high quality, low maintenance, air/hydraulically operated, tool for industrial applications. |

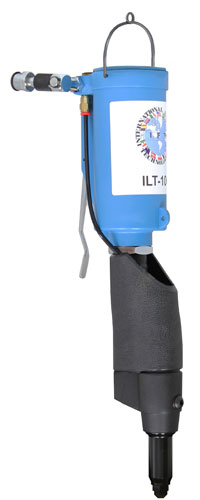

ILT-100 |
| FEATURES:
The aluminum body makes it light weight and easy to
handle. May be used with counterbalance to eliminate fatigue. |
|||||
| Materials Diameters Supported by the ILT-100 | |||||
|
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
|
| Aluminum |
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
Steel |
|
|
|
|
|
|
Stainless |
|
|
|
|
|
|
|
|
|
|
|
A very high quality, low maintenance, air operated , semi-automatic tool for industrial applications. |
101 Air FastFire Semi-Automatic Riveting Tool |
| FEATURES: The aluminum body makes it light weight and easy to handle. Straight air eliminates expensive and added maintenance of hydraulic cylinders and switches. Loads up to 100 rivets per load in less than 10 seconds. | |||||
| Materials Diameters Supported by the 101 | |||||
|
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
|
| Aluminum |
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
Steel |
|
|
|
|
|
|
Stainless |
|
|
|
|
|
|
|
|
A very high quality,
low maintenance, air
operated |

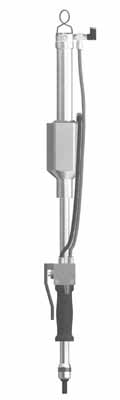

211 Air FastFire Semi-Automatic Riveting Tool |
| FEATURES: The aluminum body makes it light weight and easy to handle. Straight air eliminates expensive and added maintenance of hydraulic cylinders and switches. Loads up to 100 rivets per load in less than 10 seconds. | |||||
| Materials Diameters Supported by the 211 | |||||
|
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
|
| Aluminum |
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
Steel |
|
|
|
|
|
|
Stainless |
|
|
|
|
|
|
|
|
A very high quality, low maintenance , air operated , semi-automatic tool for bench mounted industrial applications. |
321 Air |
| FEATURES: The aluminum body makes it light weight and easy to handle. Straight air eliminates expensive and added maintenance of hydraulic cylinders and switches. Loads up to 100 rivets per load in less than 10 seconds. | |||||
| Materials Diameters Supported by the 321 | |||||
|
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
|
| Aluminum |
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
Steel |
|
|
|
|
|
|
Stainless |
|
|
|
|
|
|
|
|
A very high quality, low maintenance, air operated, semi-automatic, pantograph work station tool for industrial applications. |
220 Air FastFire Semi-Automatic Riveting Tool |
| FEATURES: The aluminum body makes it light weight and easy to handle. Straight air eliminates expensive and added maintenance of hydraulic cylinders and switches. Loads up to 100 rivets per load in less than 10 seconds. | |||||
| Materials Diameters Supported by the 220 | |||||
|
3/32" |
1/8" |
5/32" |
3/16" |
1/4" |
|
| Aluminum |
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
Steel |
|
|
|
|
|
|
Stainless |
|
|
|
|
|
|
|
|
|
|
|
A very high quality, low maintenance air/hydraulically operated tool for medium to heavy duty industrial applications. |
742 Air/Hydraulic Threaded Insert Setting Tool |
| FEATURES: As this is a spin-pull tool it utilizes one of the finest method of installing blind threaded fasteners. It has a rugged molded body and comes with a hanger for suspending on a counter balance if desired. A touch of the threaded fastener to the threaded tip automatically starts the tool to "spin on" the fastener for installation. Keeping the trigger depressed fully sets the fastener and unscrews the tool from the set fastener. It offers "dial in" stroke. | |||||||
|
Materials Diameters Supported by the 742 |
|||||||
|
|
|||||||
|
6 |
8 |
10 |
12 |
1/4" |
5/16" |
3/8" |
|
| Aluminum |
|
|
|
|
|
||
|
Copper |
|
|
|
|
|
||
|
Monel |
|
|
|
|
|
||
|
Steel |
|
|
|
|
|
||
|
Stainless |
|
|
|
|
|
||
 |
|
|
A very high quality, low maintenance air/hydraulically operated tool for medium duty industrial applications. |
PTF-650 Air/Hydraulic |
| FEATURES: As this is a spin-pull tool it utilizes the finest method of installing blind threaded fasteners. Light weight and extremely easy to use. The finest construction consists of an aluminum core with a rugged, molded outer body and comes with a hanger for suspending on a counter balance if desired. Full operator control is provided as a partial force of the insert on the mandrel automatically starts the tool to "spin on" the fastener for installation. Releasing the trigger unscrews the tool from the set fastener. It offers "dial in" force to set the insert with the same pressure every time. As it is a pull-to-force tool it can be used with multi-grip threaded inserts. | |||||||
|
Materials Diameters Supported by the PTF-650 |
|||||||
|
|
|||||||
|
6 |
8 |
10 |
12 |
1/4" |
5/16" |
3/8" |
|
| Aluminum |
|
|
|
|
|
|
|
|
Copper |
|
|
|
|
|
|
|
|
Monel |
|
|
|
|
|
|
|
|
Steel |
|
|
|
|
|
|
|
|
Stainless |
|
|
|
|
|
|
|
|
|
|
||
|
|
